Viewing the Subsectioning

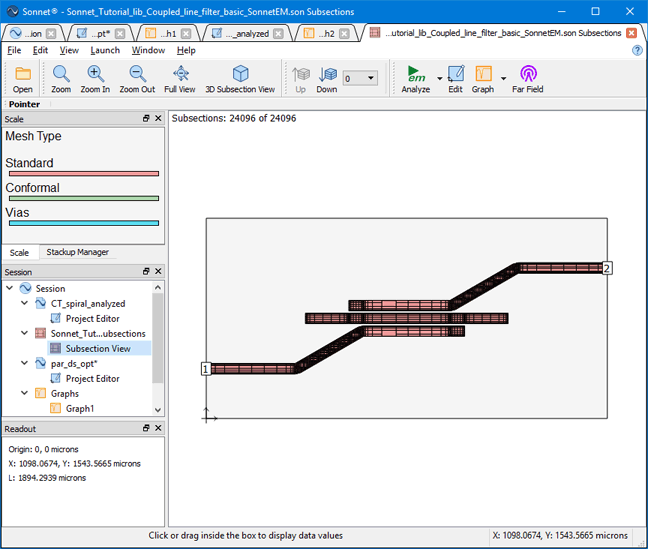

Once you have completed the setup of your analysis, you may view the subsectioning that will be used by em before you run the analysis. To do this, select Sonnet ⇒ Tools ⇒ View Subsection from the main menu in the layout window. The Create Subsections window appears and the subsections are calculated. Once that is complete, the Estimate Memory Results are displayed and Sonnet’s subsection viewer is opened showing the subsectioning of your circuit.

If calculating the subsections is taking too long, you may select the command Sonnet ⇒ Tools ⇒ Abort View Subsections.
