ADS

The ADS tab on the 3rd Party Interfaces page of the Sonnet Administration dialog box allows you to install Sonnet's Keysight ADS Interface if you did not already do so during your Sonnet Installation. You may also Uninstall the interface.

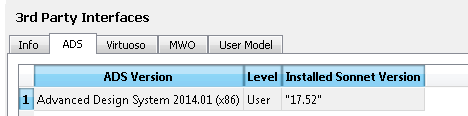

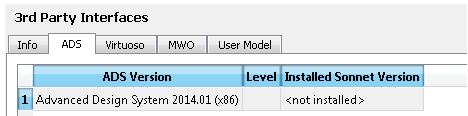

The version of Keysight ADS installed on your system is displayed as well as the version of Sonnet Software for which the Keysight ADS interface is installed. If the interface is not installed, then the Sonnet version is displayed as <not installed>.

Install: Click on this button to install Sonnet's Keysight ADS Interface for this version of the software. When the installation is complete, the Installed Sonnet Version column is updated with the Sonnet software version.

Uninstall: Click on this button to uninstall Sonnet's Keysight ADS Interface for this version of the software. When the installation is complete, the Installed Sonnet Version column is updated with the <not installed>.
