Current Density Viewing

You may view the current of circuits using conformal mesh just like any other circuit. However, the current density of conformal mesh polygons might show unusual “striping”. These stripes do not represent real current, but are a by product of the conformal meshing algorithm.

There are two types of current striping:

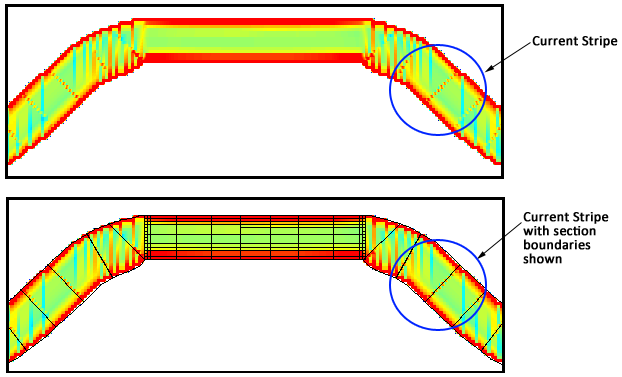

1.   A single stripe of current can appear on the junction between two conformal sections as shown below.


2.   Horizontal or vertical stripes may appear within a curved conformal section producing a “ripple” effect as shown below.
