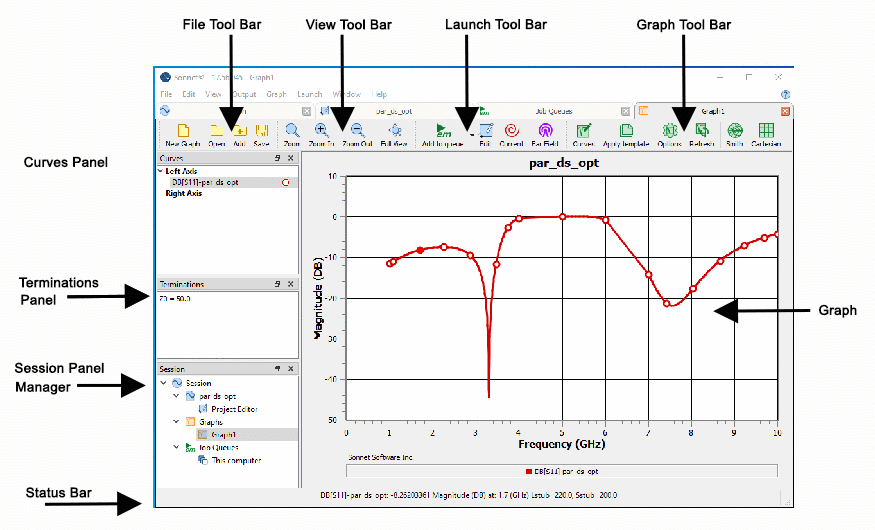

Graph Tab Window

Parent Previous Next



Status Bar: Is a horizontal bar at the bottom of your project that shows the parameters of your circuit. These can be customized by selecting the type and the number of significant digits you would like to appear on the Status Bar.


Click on the links below to learn more about the other sections.

Curves Panel

Terminations Panel

Session Manager Panel

File Toolbar

View Toolbar

Graph Toolbar

Launch Toolbar

Response Viewer Menus

It is possible to configure your tab in any way that you wish. You may click and drag the handle of any tool bar or the title bar of the Session manager to move it to a new location, or if you drag it away from the main window, you can create a standalone window. For more information, please see Reconfiguring Sonnet Windows.

The configuration of the tab is automatically saved when you exit, so that the appearance is the same the next time you open a tab. If you wish to save a configuration to be able to load it later, see Window - Toolbars and Panels - Save Window Layout. To return the tab to the original configuration at installation, select Window - Toolbars and Panels - Reset Window Layout.
