PCB
 |

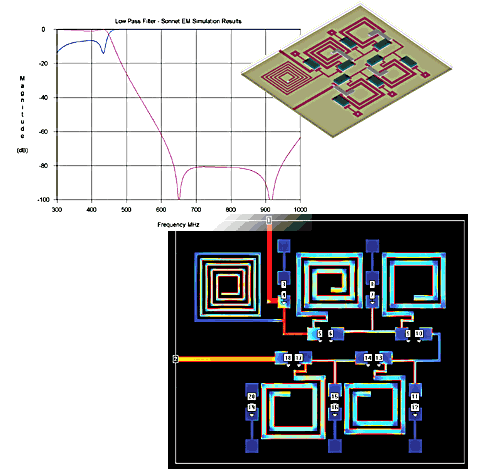

PCB low-pass filter application with printed inductors. Sonnet provides EM modeling of all layout details, including parasitics and cross coupling. Using Sonnet’s unique calibrated internal ports and a netlist interpreter, S-parameter or lumped element models for surface mount devices can be easily incorporated into the EM simulation to yield a high-confidence model for the complete circuit.
